Specifications：
DESCRIPTION:Spiral wound gasket filled expanded ptfe make Spiral Wound Gasket winding with 304/316 tape. Expanded PTFE tape with high quality is also available.Thickness: 0.6~1.0mm
Product Description:

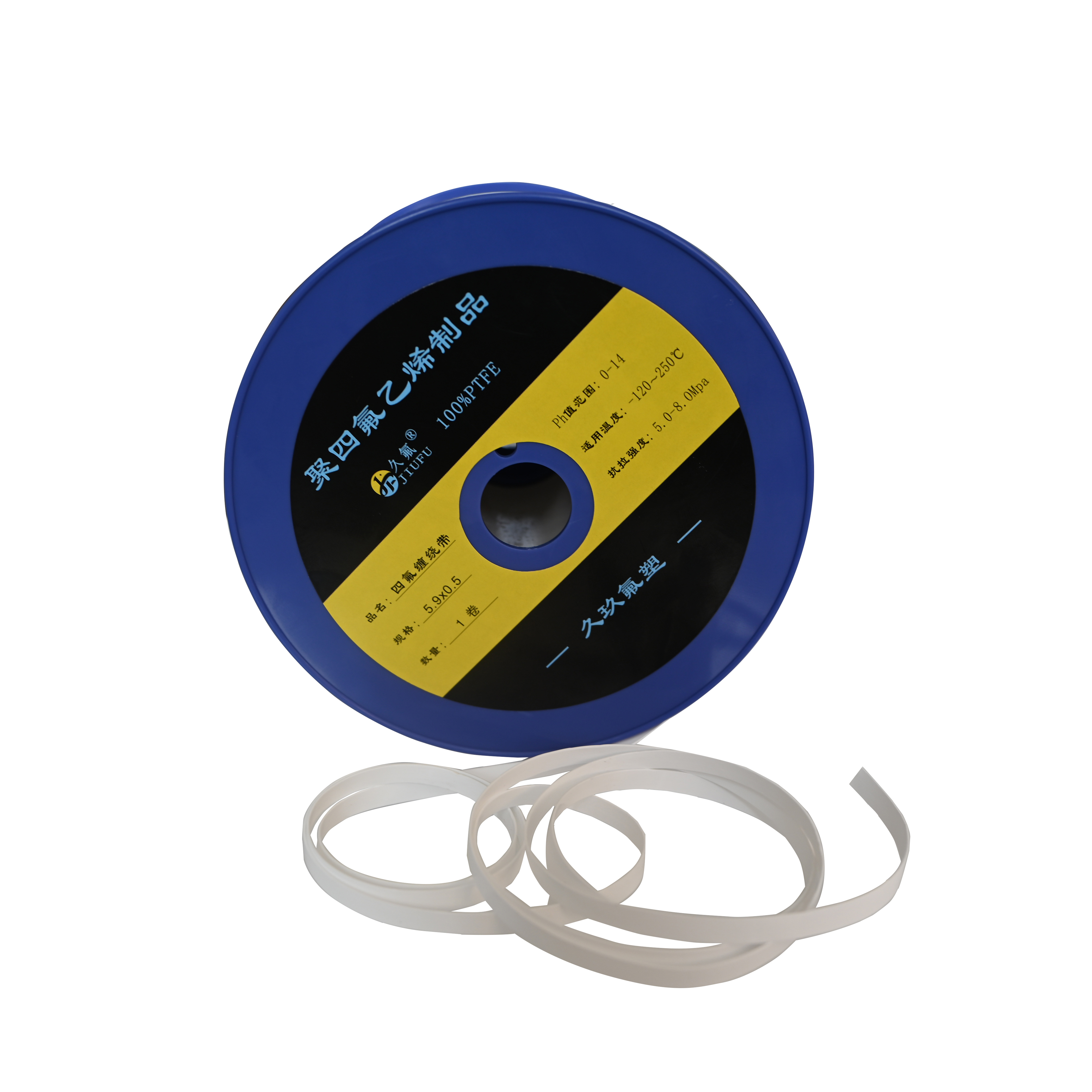

Expanded PTFE for Spiral Wound Gasket Filler
Expanded PTFE for spiral wound gasket filler material is a kind of unique tape, made from 100% expanded virgin PTFE.
EXPANDED PTFE (POLYTETRAFLUOROETHYLENE) with its special properties is one of the best filler to take up the flange compression, and compatible with the working fluid and service conditions. These gaskets are normally used with raised face flanges. And give an excellent seal due to the very long leakage path.
It will not age, harden, shrink or dry out in service, be unaffected by common chemicals.With good sealability and flexibility, it can seal rough or damaged surface. It is used in spiral wound gasket as filler material.
Features:
FEATURES of Expanded PTFE for Spiral Wound Gasket Filler
100% expanded virgin PTFE
Good sealability
Good flexibility
Highly compressible
Will not age|harden |shrink or dry out in service
Unaffected by common chemicals
pH range 0-14
Non-contaminating & non-toxic.
Meets FDA requirement (FDA 21 CFR177.1550)
Using temperature from-450°F to+600°F .
Easy to cut and install
Can seal rough or damaged surface
Data sheet:
| Item | Unit | Value |
|---|---|---|
| Temperature Limitation | ℃ | -120~260 |
| Tensile Strength | MPa | 8.5 |
| Elongation | % | 40.3 |
| Thickness | mm | 0.5~1.0 |
| Width | mm | 3.5/4.2/5.6/5.9/6.3 |
| Density | g/cm3 | ≤1.5 |
| PH Range | 0~14 |
